| Brand Name: | SUMA |
| Model Number: | MI300 MG300 |
| MOQ: | 1 |
| 価格: | $108-145 |

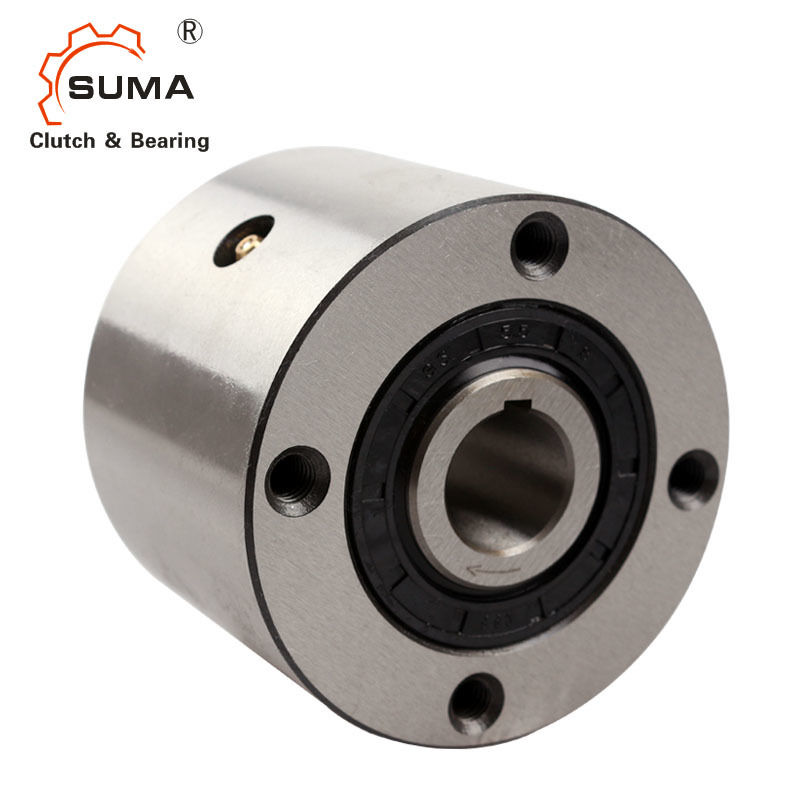

| Item | MI300 one way cam clutch |
|---|---|
| Precision | P0 |
| Type | cam |
| Bore size (mm) | 19 |
| Outer race (mm) | 77 |
| Torque (KN) | 314Nm |
| Max. Indexing (cycle/min) | 300 |
| Drag Torque(Nm) | 0.31 |
| Weight (kg) | 1.8kg |
| Package | wooden box or customizable |
| Delivery time | 5-7 days after order confirmed |
| Payment terms | L/C, T/T, D/P, D/A, Western Union |
| Model | Torque | Max. | Bore Size | Keyway | Dimensions (mm) | PCD | Tapped Holes | Weight (kg) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity (Nm) | Drag Torque (Nm) | Overrunning (r/min) | Indexing (cycle/min) | A | B | C | |||||||
| MG 300 | 314 | 0.23 | 2800 | 900 | 19 | 5x2 | 63 | 77 | 60 | 66 | 4xM6xP1.0 | 1.8 | |
