| Brand Name: | SUMA or OEM |
| Model Number: | CSK40/ CSK40PP-2RS |
| MOQ: | 10 |
| 価格: | $5.40-6 |

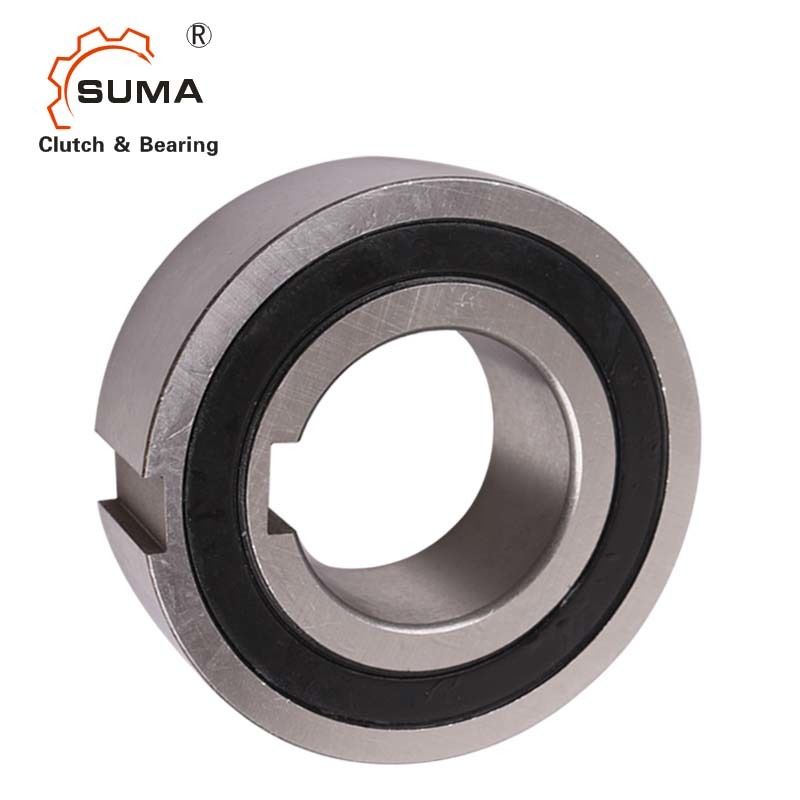

The CSK40 one way bearing is a sprag type freewheel integrated into a 62-series ball bearing (except size 8 and 40). It comes pre-lubricated and protected against dust particles larger than 0.3mm.
| Parameter | Value |
|---|---|
| Model | CSK40 |
| Material | GCr15 |
| Inner diameter | 40mm |
| Outer diameter | 80mm |
| Thickness | 22mm |
| Torque capacity | 325Nm |
| Weight | 0.5kg |
| Structure | Sprag type |
| Applications | Textile machines, fans, ventilators, printing machines |
| Type | Size (mm) | Torque (Nm) | Max Speed (min-1) | Dynamic Load (kN) | Static Load (kN) | Weight (kg) |
|---|---|---|---|---|---|---|
| CSK40 | 40 | 325 | 3000 | 15.54 | 12.25 | 0.5 |
| CSK40 2RS | 40 | 325 | 3000 | 15.54 | 12.25 | 0.6 |
Changzhou Suma Precision Machinery Co., Ltd (Changzhou Tianniu Clutch Factory) is a specialized manufacturer producing various cam clutches, one way bearings, one way clutches, backstop clutches, overrunning clutches and other bearings with high technology.
We adhere to "Best Quality, Best Price, Fast Delivery, Best Service" to satisfy all our customers.
Yes, we highly encourage customers to request samples for quality verification before placing bulk orders.
