製品詳細
起源の場所: 江蘇、中国
ブランド名: SUMA
モデル番号: FGK 25
支払及び船積みの言葉
最小注文数量: 1
精度定格: |
p6 |
密封器の種類: |
開ける |
外径: |
42mm |
内径: |
25mm |
身長: |
48mm |
材料: |
クロム鋼 GCr15 |
トルク: |
70nm |
直径のボア: |
25mm |
トルク容量: |
70nm |
内部レース速度: |
530R/min |
アウターレーススピード: |
3800R/min |
動的負荷: |
6300N |
静的負荷: |
3450N |
重さ: |
0.11kg |
タイプ: |
スプラグ |
精度定格: |
p6 |
密封器の種類: |
開ける |
外径: |
42mm |
内径: |
25mm |
身長: |
48mm |
材料: |
クロム鋼 GCr15 |
トルク: |
70nm |
直径のボア: |
25mm |
トルク容量: |
70nm |
内部レース速度: |
530R/min |
アウターレーススピード: |
3800R/min |
動的負荷: |
6300N |
静的負荷: |
3450N |
重さ: |
0.11kg |
タイプ: |
スプラグ |

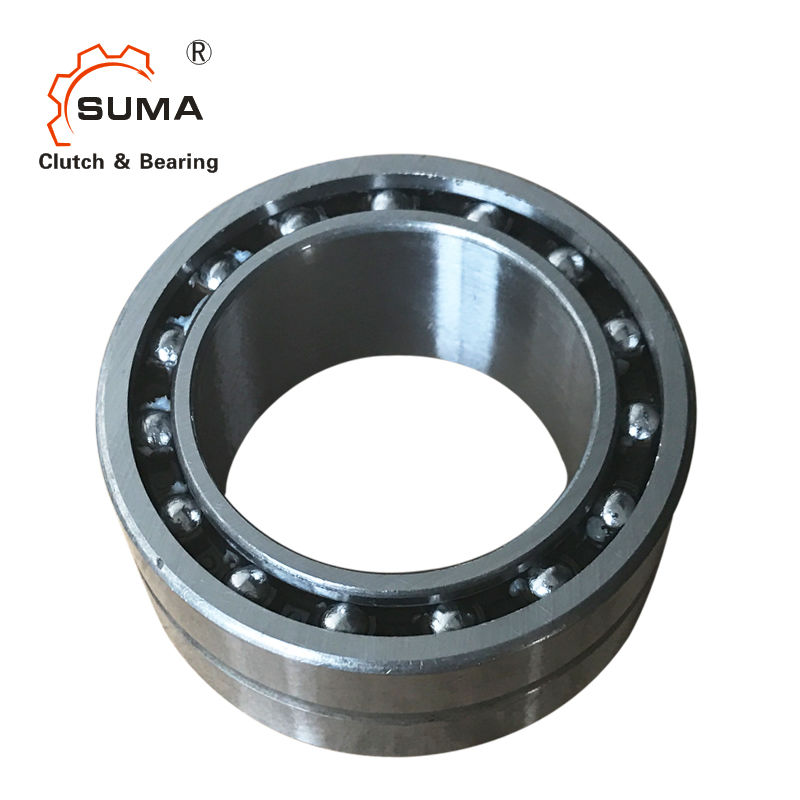

Internal Freewheels FGK are sprag freewheels with bearing support in the dimensions of the needle bearing series 59.
| Model | FGK25 |
|---|---|
| Material | Gcr15 |
| Bore diameter | 25mm |
| Outer diameter | 42mm |
| Height | 48mm |
| Torque capacity | 70Nm |
| Inner race overrun speed | 530r/min |
| Outer race overrun speed | 3800r/min |
| Application | Automobiles, motorcycles, power tools, textile machines |
| Package | Carton package / Wooden package |
| Delivery time | 5-7 days |
| Payment terms | TT, L/C, D/P, D/A, Western Union, Paypal |
| Size | Nominal Torque (Nm) | Max. Speed (Inner/Outer) | Load Rating (Dynamic/Static) | Bore (mm) | D (mm) | K (mm) | L (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| FGK20 | 50 | 5,500/4,000 | 5,600/4,400 | 20 | 37 | 42 | 23 | 0.09 |
| FGK25 | 70 | 5,300/3,800 | 6,300/5,300 | 25 | 42 | 48 | 23 | 0.11 |
| FGK30 | 95 | 5,000/3,500 | 7,700/5,500 | 30 | 47 | 54 | 23 | 0.13 |
| FGK35 | 200 | 4,600/3,200 | 8,200/8,500 | 35 | 55 | 63 | 27 | 0.20 |
| FGK40 | 310 | 4,200/3,000 | 8,650/8,300 | 40 | 62 | 70 | 30 | 0.30 |
| FGK45 | 370 | 3,800/2,500 | 9,200/9,650 | 45 | 68 | 76 | 30 | 0.34 |
| FGK50 | 460 | 3,400/2,200 | 9,650/10,000 | 50 | 72 | 80 | 30 | 0.36 |
Changzhou Suma Precision Machinery Co., Ltd (Changzhou Tianniu Clutch Factory) is a manufacturer specialized in producing various cam clutches, one way bearings, one way clutches, backstop clutches, overrunning clutches and other bearings with high technology.
We follow "Best Quality, Best Price, Fast Delivery, Best Service" to satisfy all our customers.
Total less than 25 KG: Each in white box + 19*18*9cm box + 29*28*19CM carton box
Total Weight over 100KG: Carton box + Wooden Box / Wooden Pallet
Small items: In stock
Medium Items: 10-15 Days
Big items: 20-25 Days
